Double Hung Windows

Series 9000 - Tilt Double Hung

Technical Details Features Testing Results
Tilt Double Hung Continuous Lift/Lock Rail H-C70 Rating
3 1/4" Frame Continuous Anti-Drift/Lock Rail Air Infiltration: 0.08 cfm2
7/8" Insulating Glass Dual Seal Double Strength Glass Water Pressure: 10.66 PSF
H-C70 Rating Narrow Sightlines Load Deflection: 75.24 PSF
2 7/8" Jamb Fully Thermally-Broken Components Load Structural: 105.33 PSF
2 3/4" Head Concealed Tilt Latches Entry Resistance: Grade 10
1 7/8" Meeting Rails Solid Stainless Steel Pivot Bars
3 1/8" Sill Telescoped Corners
4 7/8" Twin DH 1-Piece Mullion Auto Engage/Release Sashes
3 7/8" Fixed/DH 1-Piece Mullion Continuous Head and Sill
2 1/2" Flange Head/Jamb/Sill Options Rounded Profiles
Cut Size on W&H: 1/8" OITC 30 Rating
Minimum Size: 12" x 21" Corresponding Fixed Unit: 9510
Maxiumum Size: 60" x 99"
Click Image to Enlarge:

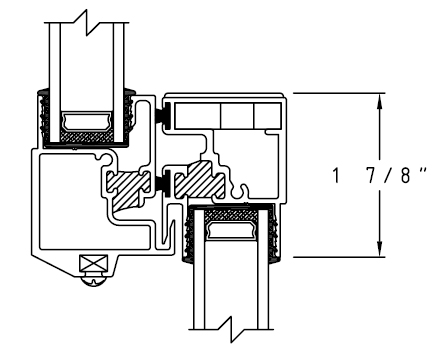

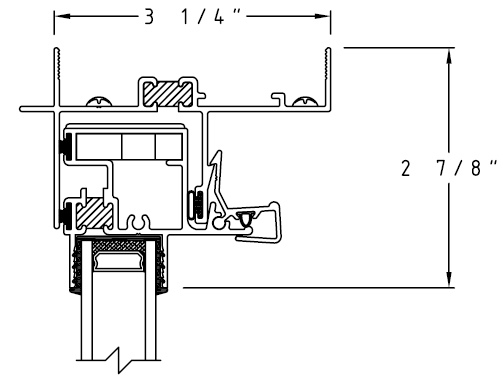

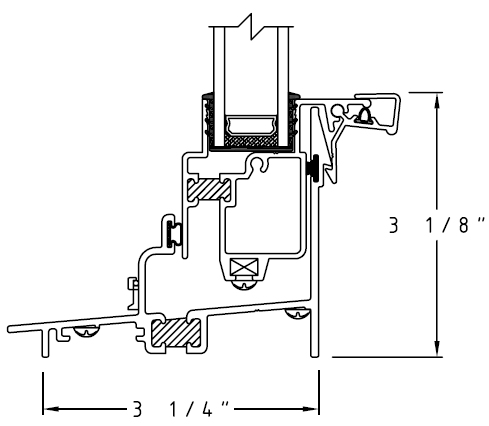

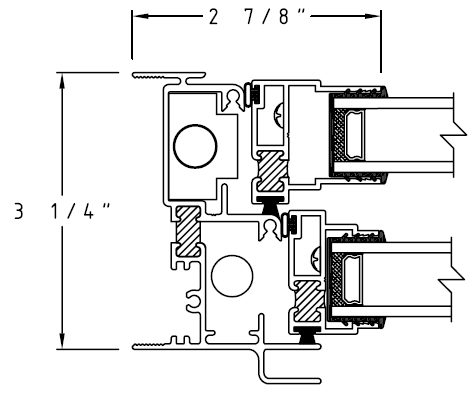

Head Jamb Meeting Rail Sill
Head Jamb Meeting Rail Sill
