Fixed Windows

Series 4710 - Fixed

Technical Details Features Testing Results
Fixed Window Fully Thermally-Broken Components FW-C90 Rating
2 1/2" Frame Beveled Sashes Air Infiltration: <0.01 cfm2
7/8" Insulating Glass
Corresponding Units:
Water Pressure: 15.05 PSF
     4100 Projected Outswing
Load Deflection: 97.81 PSF
2 1/2" Flange Head/Jamb/Sill
     4200 Projected Inswing
Load Structural: 135.42 PSF
Cut Size on W&H: 1/8"
     4300 Casement Outswing
Entry Resistance: Grade 40
Minimum Size: 12" x 21"
     4400 Casement Inswing
Maxiumum Size: 60" x 60"
Click Image to Enlarge:

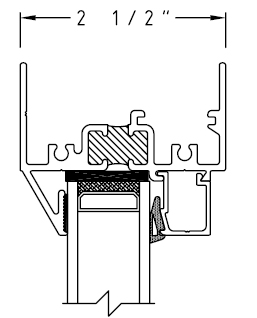

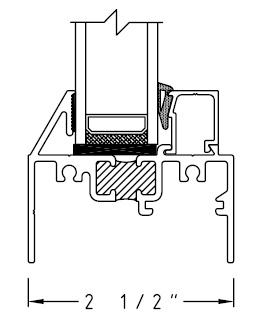

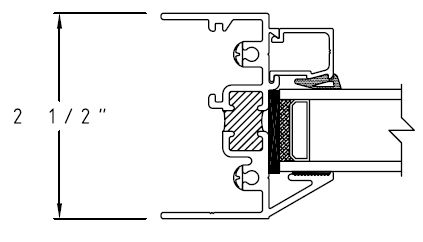

Head Jamb Sill
Head Jamb Sill
Download Materials for 4710:
